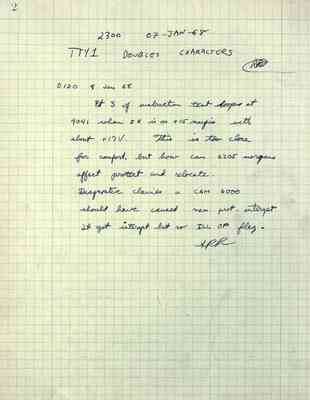

2300 07-JAN-68

TTY1 Doubles Characters RB[?]

0130 8 Jan. 68 Pt. 3 of instruction test loops at 4041 when 2H is on +15 margins with about +17V. This is too close for comfort but how can 6205 margins affect protect and relocate. Diagnostic claims a CAM 6000 should have caused mem. prot. interupt It got interupt but no ILL OP flag. SRR

Last edit over 3 years ago by Soazdrmm
7
Complete

7

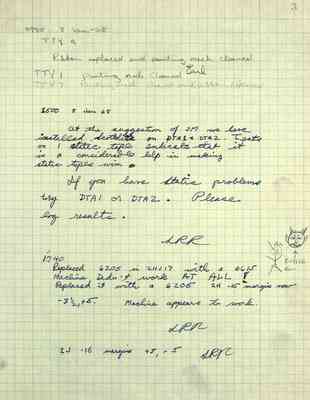

0930 8 Jan - 68 TTY 4

Ribbon replaced and printing mech cleaned

TTY 1 printing mech cleaned Earl TTY 7 Printing mech cleaned and ribbon replaced

1500 8 Jan 68

At the suggestion of SM we have installed [Scotchlite?] on DTA1 & DTA2. Tests on 1 static tape indicate that it is a considerable help in making static tapes wim

If you have static problems try DTA1 or DTA 2. Please log results.

LRR

1740 Replaced 6205 in 2HJ17 with a 0615 Machine didn't work AT ALL! Replaced it with a 6205 2%-15 margins now -3 1/2, +5. Machine appears to work

LRR

Last edit about 5 years ago by guest_user
8
Complete

8

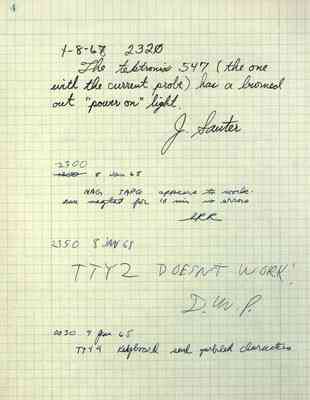

1-8-68 2320

The tektronix 547 (the one with the current probe) has a burned out "power on" light. J. Sauter

2300 1200[crossed out] 8 Jan 68

MAG TAPE appears to work. ran magtst for 10 min no errors SRR

2350 8 JAN 68

TTY2 DOESN'T WORK! D. W. P.

0030 9 Jan 68

TTY Keyboard send garbled characters

Last edit over 3 years ago by Soazdrmm
9
Complete

9

[Lab page 5]

1-9-68 0045

Re-read error on disk. The left half of the second word of the third sector of a 40K transfer was spread throughout all subsequent halfwords of the sector. Error happened on write.

J. Sauter

1-9-68 0110

TTY1 Double trip [NSW?]

140 9 Jan 68

After running mach 3.15 for 1 hr 30 min. got a parity at location 533. bit 13 was dropped see hardware log of 18 Dec 67. Disk was swapping, SRR

last op was a read. no disk errors. DOOM - D Poole! SRR

Last edit over 3 years ago by Soazdrmm
10
Complete

10

[notebook page] 6

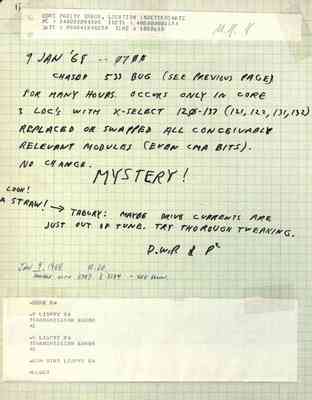

[printout taped to page] CORE PARITY ERROR, LOCATION INDETERMINATE PC = 340000004506 INSTR = 402000001134 DATE = 000641046230 TIME = 1020:35 M. H. H.[handwritten] [end of printout]

9 JAN 68 - - 0700

CHASED 533 BUG (SEE PREVIOUS PAGE) FOR MANY HOURS. OCCURS ONLY IN CORE 3 LOC'S WITH X-SELECT 120-137 (121, 122, 131, 132) REPLACED OR SWAPPED ALL CONCEIVABLE RELEVANT MODULES (EVEN CMA BITS). NO CHANGE.

MYSTERY !

LOOK! A STRAW! [arrow point to:] THEORY: MAYBE DRIVE CURRENTS ARE JUST OUT OF TUNE. TRY THOROUGH TWEAKING.

D.W.P & P[super]2

Jan 9, 1968 10:30 Trouble with DTA7 & DTA4 -SEE BELOW,

[printout taped to page] . CORE 24

.R LISPXY 24 ?TRANSMISSION ERROR [up arrow]C

.R LISPXY 24 ?TRANSMISSION ERROR [up arrow]C . RUN DTA7 LISPXY 24

ALLOC? [end printout]

Last edit over 3 years ago by Soazdrmm
